  4. N656120

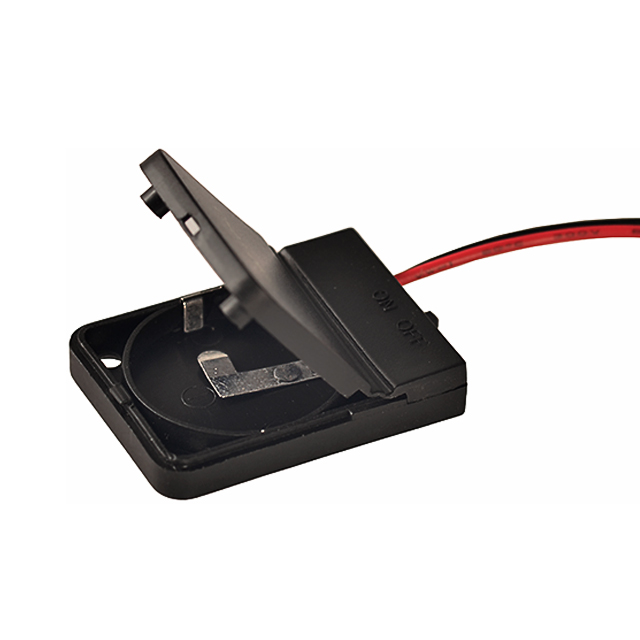

Coin cell battery holder for CR2032 with on-off switch with cable 150mm
この商品はオンラインで注文ができなくで、お問い合わせてください。
お問い合わせ
データシート
電気の特性

Specifications

·Battery type: Coin cell
·Battery cell size: CR2032
·Number of cells: 1
·Wire: UL1007 AWG26, black & red
·Cable length: 15cm
·Strip & tin: 4mm ±1mm

Materials

·Housing: PP resin, black
·Contact: Phosphor bronze 0.15mm THK, nickel plated
