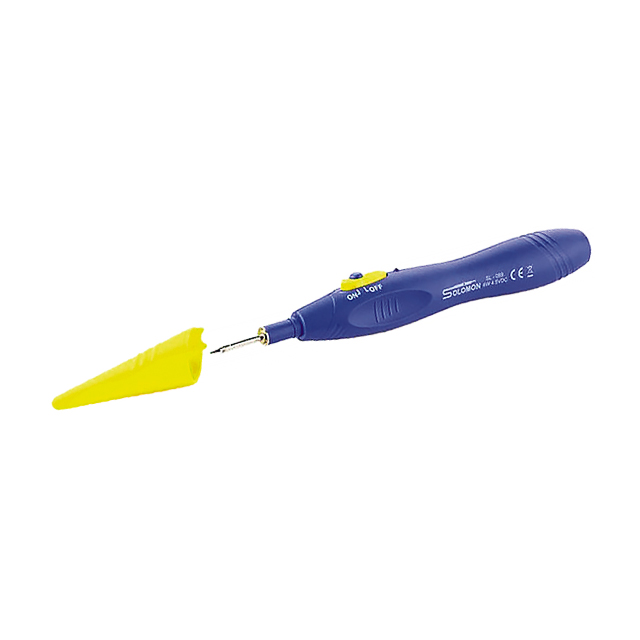

Specifications

·Power type: Battery
·Input voltage: 4.5V (3x1.5V AA battery)
·Output power: 6W
·Weight: 86g (without batteries)

Descriptions

Operating Instructions
·Slide the battery cover open at the end of the soldering iron.
·Place 3x1.5V AA alkaline batteries into the iron as illustrated and replace cover.
·Remove the protective cover at the tip.
·Make sure tip is securely installed.
·Slide the On/Off switch to the "ON" position.
·Hold the soldering iron like a pen.
·Press the round button on top of the On/Off switch continuously for approx. 15S.
·The tip should reach working temperature.
·To save power, only press button when actually soldering.
·The hot soldering iron should be placed standing upright with the tip pointing up when not in use to avoid contacting the surrounding.
·After soldering , slide the switch to the "OFF" position, replace the protective cover.
Maintenance
·If it takes more than 30 seconds to reach working temperature, replace the batteries.
·Use alkaline batteries for best results. Do not mix old and new batteries.
·With 3 new batteries, this soldering iron can operate continuously for approx. 60 minutes.
·Do not change the soldering tip when hot, Use the tip exchanger provided to remove the tip as shown.
·The soldering tip is iron-plated long life tip an therefore do not file the tip.
·If the soldering iron is not to be used for a long period of time, remove the batteries from the soldering iron.
Safety Notes
·Place the protective cover over the tip when storing such that the cover secures the slide switch in the "OFF" position.
·Tip is hot, do not touch, do not immerse in water!
·After using the soldering iron, cool the iron naturally before storing away.
·Always switch off the soldering iron after use by sliding the switch to the "OFF" position.
