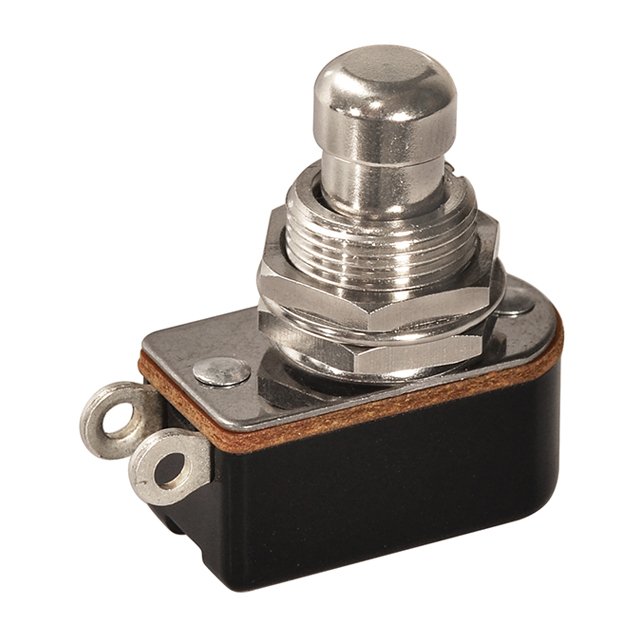

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.
Specifications
·Circuit: SPST
·Switch function: Momentary / NO / Off-(On)
·Rating: 6A 125VAC / 3A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating temperature: -20°C to +65°C
Materials
·Frame: Stainless plate
·Bushing: Nickel plated metal
·Toggle: Nickel plated metal
·Base: Phenolic
