電器特性
Overview

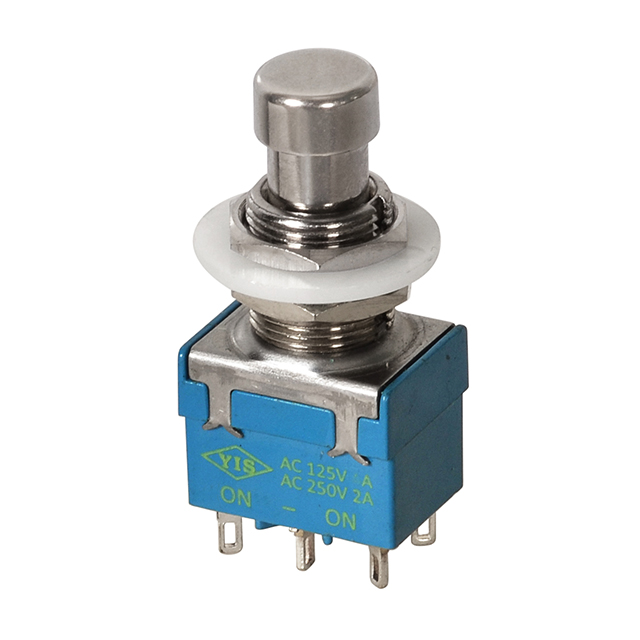

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.
Specifications
·Circuit: DPDT
·Switch function: Latching / Off-On
·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric Strenth: 1500VAC for 1 minute
·Opeating temperature: -20°C to +65°C
·Electrical Life: 20,000 make-and-break cycles at full load
