Overview

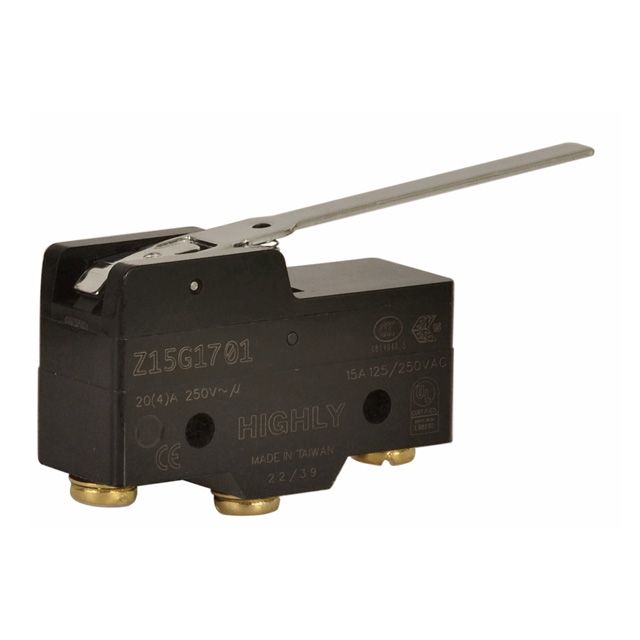

Micro Switch – Precision Snap-Action Switch
Micro switches are compact snap-action switches requiring minimal force for actuation. Found in industrial controls, appliances, and automotive systems, they are valued for long life, precise switching, and varied actuator styles.

Features

·High precision basic switch in a variety of styles
·Wide margins of operating conditions increase the operating speed range
·Available in general purpose

Specifications

·Circuit: SPDT
·Switch function: On-On
·Rating: 15A 250VAC
·Contact resistance: 15mΩ Max. (initial)
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute between terminals of same polarity
·Mechanically life: 1,000,000 operations Min.
·Electrically life: 100,000 operations Min.
Operating characteristics
·OF Max.: 70g
·RF Min.: 14g
·PT Max.: 10mm
·OT Min.: 5.6mm
·DT Max.: 1.27mm
·OP: 19±0.8mm
