Overview

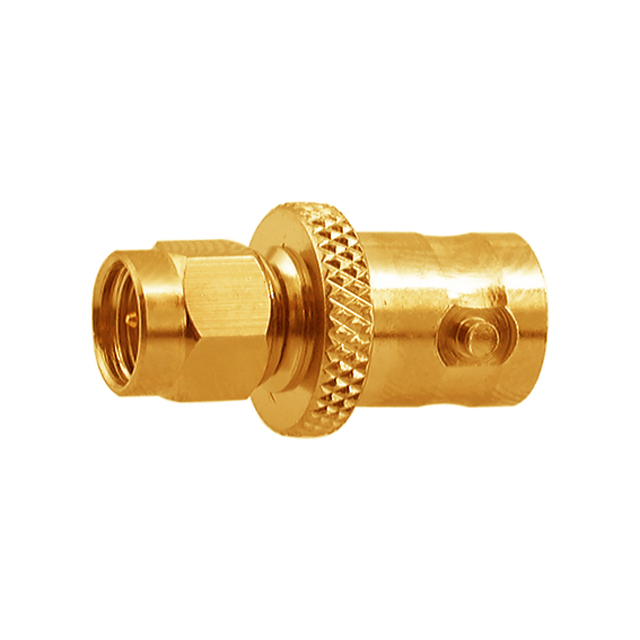

SMA Connector – High-Frequency RF Coaxial Connector
SMA connectors are precision RF coaxial connectors for high-frequency use up to 18 GHz or more. Common in wireless systems, antennas, GPS modules, and test equipment, they feature a secure screw-type coupling for low signal loss and long-term reliability. Available in straight, right-angle, bulkhead, and panel-mount styles.
Specifications
·Gender: Male - female
·Adaper type: SMA to BNC
·Adapter type A: SMA
·Adapter type B: BNC
·Impedance: 50Ω
·Body orientation: Straight
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
