電器特性
Specifications
·Gender: Male - female

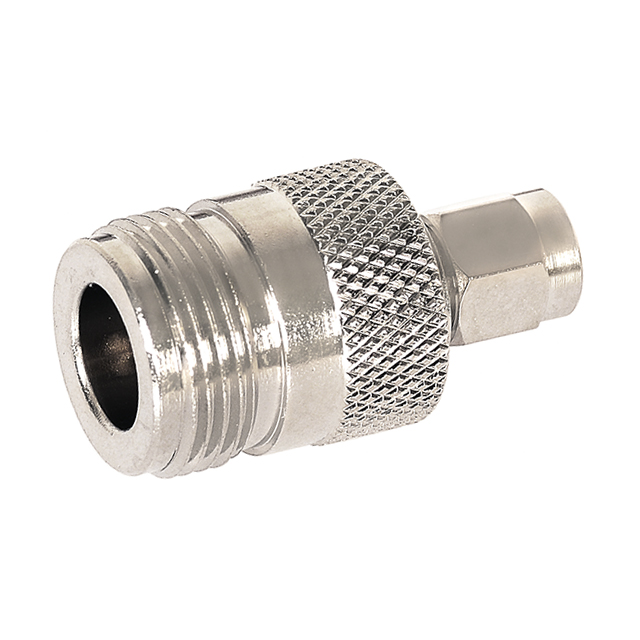

·Adapter type: SMA to N
·Adapter type A: SMA
·Adapter type B: N
·Impedance: 50Ω
·Body orientation: Straight
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
Materials
·Body: Brass, nickel pated
·Pin: Brass, gold plated
·Insulation: Teflon
·Retaining ring: Stainless
·Gasket: SI-rubber, red
·Shell: Brass, nickel plated
