電器特性
Specifications
·Gender: Male - male

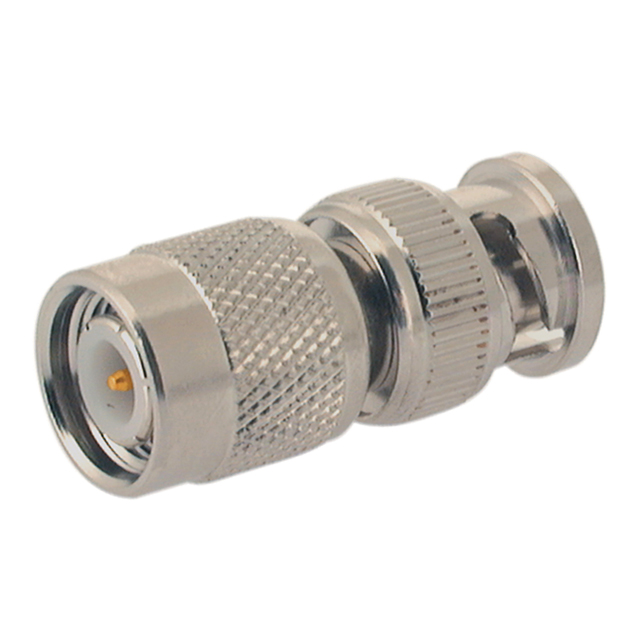

·Adapter type: TNC to BNC
·Adapter type A: TNC male
·Adapter type B: BNC male
·Impedance: 50Ω
·Body orientation: Straight
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
