1. 首頁
  2. 高頻連接器
  3. TNC連接器
  4. M5766

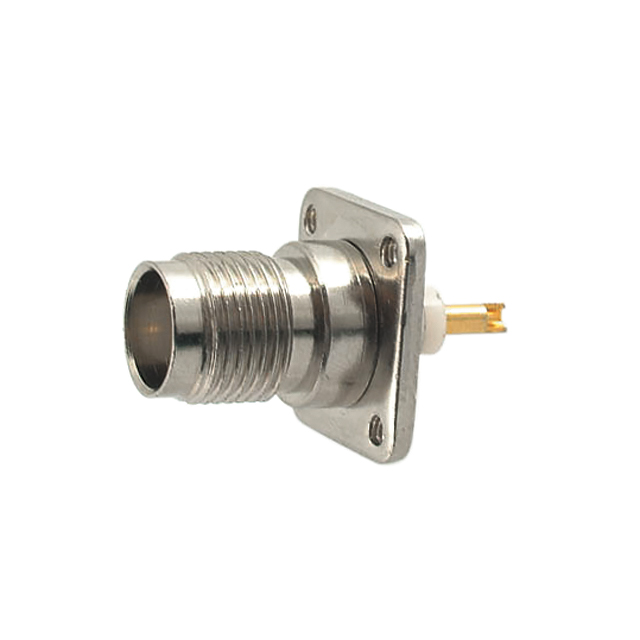

TNC female chassis mount gold-pin
每一個單價 (USD)
數量 價格
2000+ 0.5824
購買
輸入數量查看交期
尺寸圖
電器特性

Specifications

·Gender: Female
·Connector type: TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Chassis mount
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
