電器特性

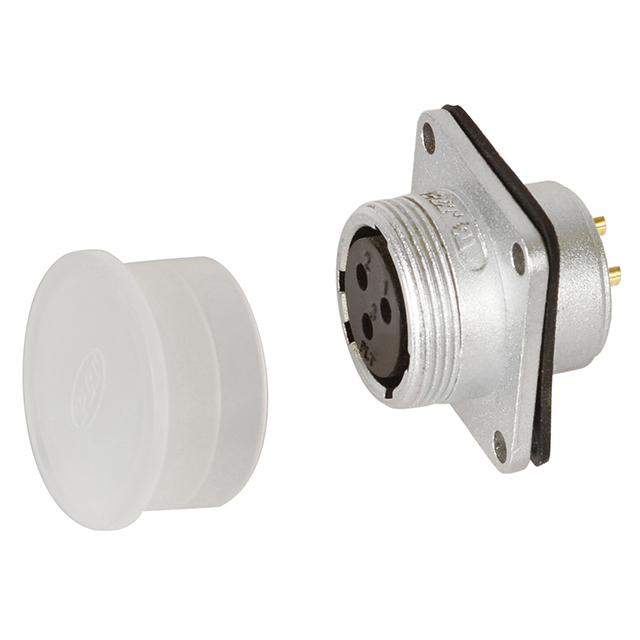

Specifications
·Gender: Female
·Pin diameter: 1.8mm
·Rated current: 15A
·Rated voltage: 250V
·No. of contacts: 3
·Connector size: M22
·Mounting type: Panel mount
·Body orientation: Straight
·Operation limit voltage: 250VAC rms
·Contact resistance: 3.0mΩ Max. at DC 1A
·Insulation resistance: 2000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC rms for 1 minute
Materials
·Body: Zn alloy, M-Cr plated
·Ring: SUS
·Insulator: Bakelite
·Contact: Copper alloy, M-Au plated
