電器特性

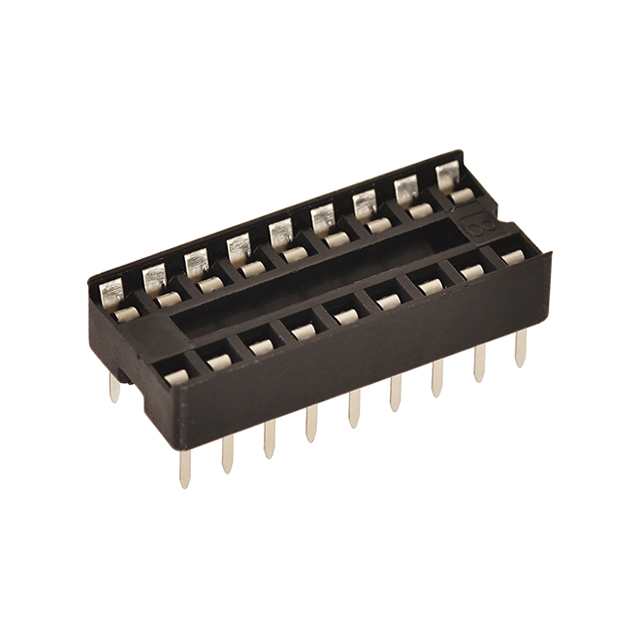

Specifications
·Pitch: 2.54mm
·No. of contacts: 18
·Pin type: Stamped
·Current rating: 1A Max.
·Row pitch: 0.3" (7.62mm)
·Mounting type: Through hole
·Orientation: Vertical
·Termination: Solder
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C
Materials
·Housing: Thermoplastic (UL94V-0), black
·Terminal: Copper alloy (t=0.15mm), tin plated
