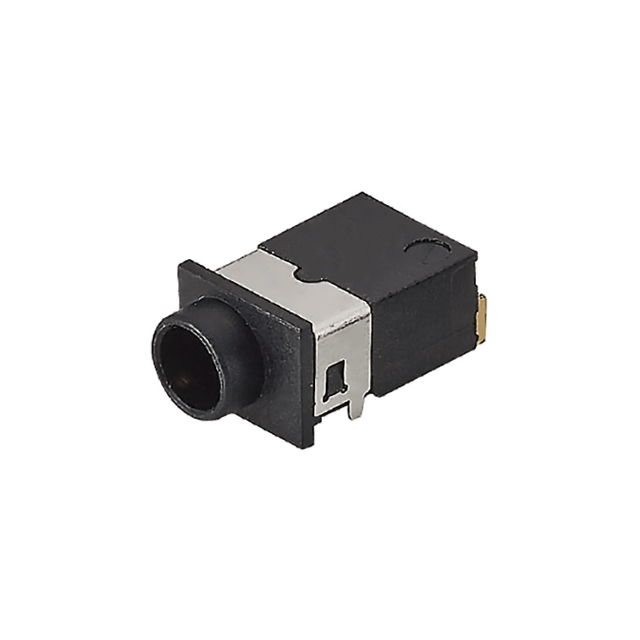

Waterproof DC power jack 5A 20VDC
Central pin 1.3mm
Can reach to IPX7
這個產品無法線上訂購,請發送詢問!
尺寸圖
電器特性

Overview

DC Power Jack – Stable & Reliable Power Connector
A DC power jack is a common connector for receiving direct current (DC) power, typically mounted on a PCB or device chassis. It is widely used in laptops, desktop computers, cameras, routers, headphones, audio equipment, and other electronics requiring stable power.
Available in various center pin diameters, the most common are 2.1 mm and 2.5 mm, matching the inner sleeve of DC power plugs. High-current models can handle up to 8 A, making them suitable for demanding applications.

Specifications

·Gender: Jack
·Type: DC socket
·Pin diameter: 1.3 mm
·Current rating: 5A
·Voltage rating: 20VDC
·Mounting: Through hole
·Protection degree: IPX7

Materials

·Terminal 1: Brass, gold plated
·Terminal 2: P.B.S, gold plated
·Terminal 3: P.B.S, gold plated
·Housing: PA10T, black
·Cover: PA10T, black
·Glue: Silicon, white
·Shield: Brass, nickel plated
