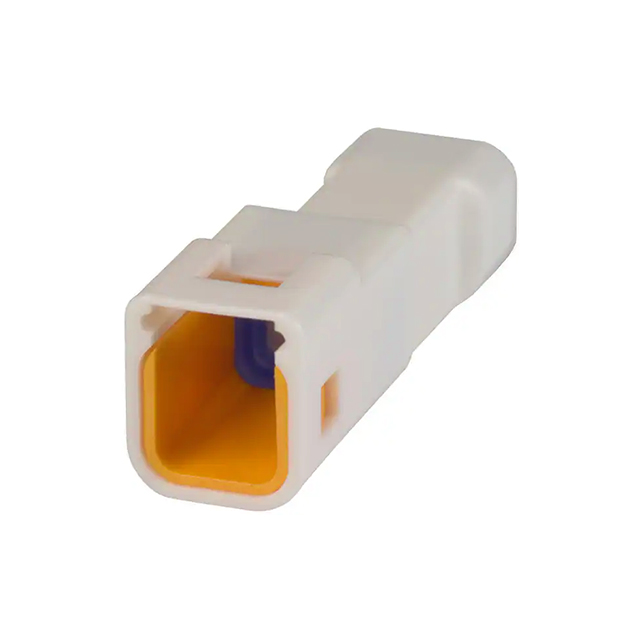

2mm Sealed JWPF series automotive plug housing single row 2 position
這個產品無法線上訂購,請發送詢問!
尺寸圖
電器特性

Specifications

·Type: Automotive connector
·Series: JWPF Series Connector
·Gender: Male
·Pitch: 2.0mm
·Number of contacts: 2
·Number of Rows: 1
·Current rating: 3A Max.
·Voltage drop: 5mV/A
·Isolation resistance: 800MΩ
·Dielectric resistance: 1000VAC
·Mounting type: Cable mount
·Termination method: Crimp
·Operating temperature: -40°C to +85°C
·Applicable wire size: 26AWG ~ 22AWG

Materials

·Housing: PBT
·Colour: White
