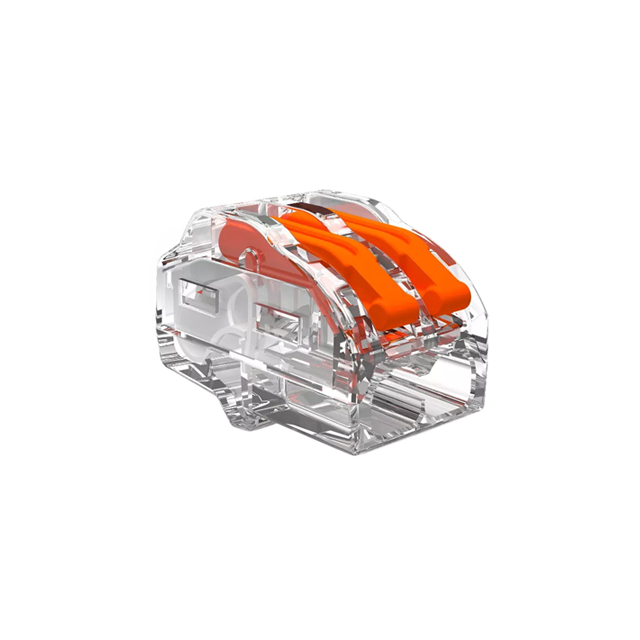

Splicing connector for electrical industry 2P 32A 28-14AWG cable mount with approval
  • 產品編號:X97620A
  • 產品類別 : 端子台
  • 安規認證:
這個產品無法線上訂購,請發送詢問!
尺寸圖
電器特性

Features

·Re-usable and for use with rigid/solid and flexible/stranded conductors.
·Transparent shell makes wire inserted and insulation stripped properly.
·Rated to 600V Max. for building wiring and 1000V Max. lighting fixtures and signs.

Specifications

·Number of ways: 2
·Current rating: 32A
·Voltage rating: 450V (IEC) / 600V(UL)
·Mounting tyep; Cable mount
·Operating temperature: T85 (IEC), 105°C (UL)
·Stripping length: 10mm
·Color: Transparent housing and orange lever
·Wire size:
0.2~0.4mm2, Rigid/flexible (IEC)
#28-#14 AWG, Sol/str, #12 AWG Sol Cu (UL)

Materials

·Housing: Polycarbonate (PC), flame-retardant to UL94V-0
·Lever: Polyamide (PA)
