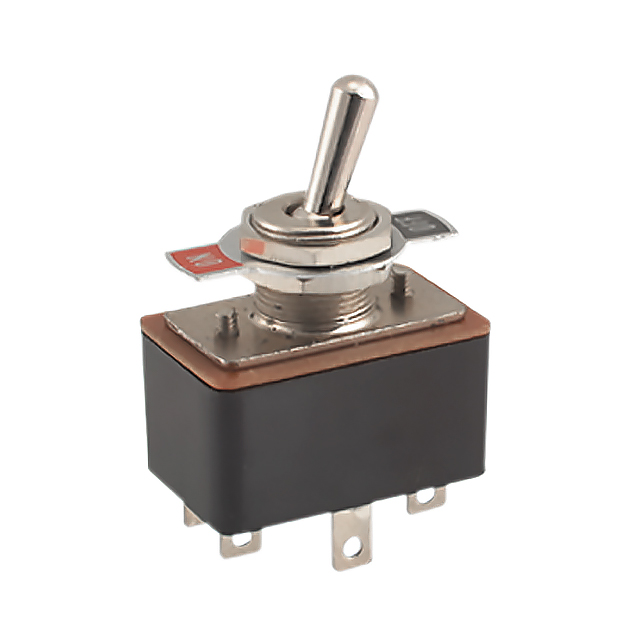

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.
Specifications
·Rating: 6A 125VAC / 3A 250VAC
·Switch operation: On-on
·Contact configuration: DPDT
·Mounting type: Panel mount
·Terminal type: Tab
·Contact resistance: 50mΩ Max
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Electrical life: 20,000 make and break cycles at full load
