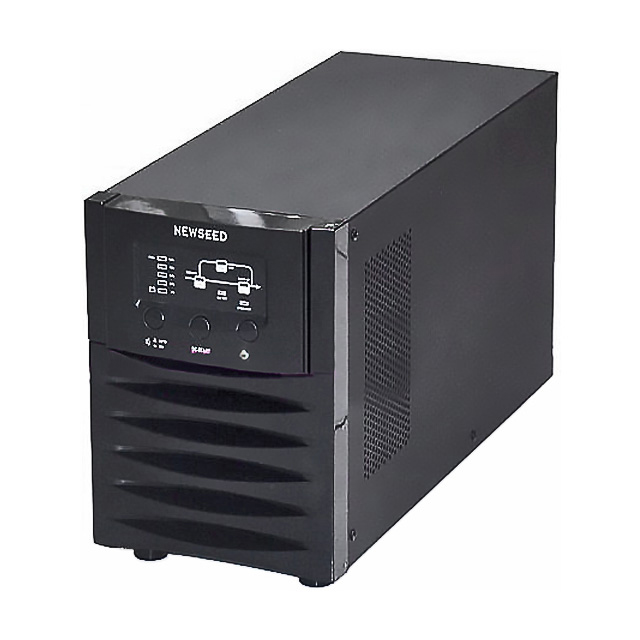

Uninterruptible power supply (UPS) 6 outlets 2KVA (1200W), 220VAC 230VAC 240VAC
This item can't be ordered online, please send inquiry!!
Electrical Characteristics

Features

·Full low frequency working, no interference to your equipment
·Built-in AVR offering wider applications
·With battery start function
·With overload and short circuit protection
·Multiple audio warning functions
·Containing various LED indicating functions
·With mute switch
·Lightning surge protecting device
·Incorporated with DB9 communication interface
·With auto-restart function
·Custom long time discharge model acceptable
·With large starting current suitable for elevator of each brand

Specifications

·Capacity: 2000VA / 1200W
·Input voltage: 220V / 230V / 240VAC
·Output voltage: 220V / 230V / 240VAC ±10%
·Output waveform: Simulated sine-wave
·Output transfer time: < 4ms
·Output outlets: NEMA5-15R x 6pcs or the other type
·Battery voltage: 48VDC
·Battery type: High rate 12V/5AH
·Battery quantity: 4PCS
·Back-up time (load with 1 PC): 90mins
·Recharge time: 8 hours to 90% after fully discharged
·Line conditioning regulation (AVR): 1 step boost / 1 step buck
·LED display (10 LEDs):
Normal (green)
Back up (green)
AVR on (orange)
UPS cut-off (orange)
Overheat (red)
Battery level (5LEDs)
·Alarm: Buzzer on for back-up mode, battery low, over-heat
·Auto alarm reset: Yes
·DC start (cold start): Yes
·Auto restart UPS: Yes
·Output auto delay: Yes
·Overload / short protection:
Circuit breaker (line mode)
Fuse and electronic circuit (back-up mode)
·Lightning / surge protection: 350J / 10000A
·Communication port (DB9): RUPS-2000 software for windows 95/98/NT/2000/ME/XP/Vista
·UPS for elevator: Yes
·Operation temperature: 0°C to +40°C
·Relative humidity: 0 ~ 95% (non condensing)
·Audible noise: < 40dBA (at 1M)
·Dimension (W x D x H): 160 x 410 x 236 mm
·Net weight: 20.3 kgs

Applications

·Personal computer
·IT equipment
·Work station
·Document control
·Audio/video room
·Sales management system
