Electrical Characteristics

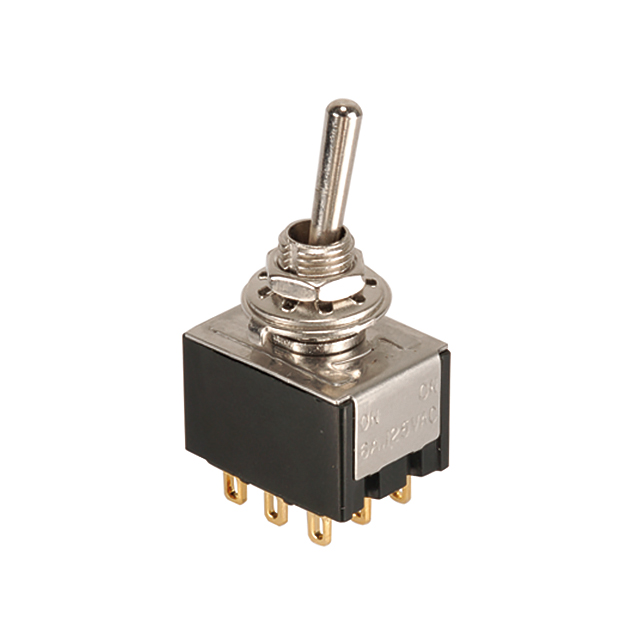

Specifications
·Rating: 5A 120VAC / 2A 250VAC
·Switch operation: On-on
·Contact configuration: 3PDT
·Mounting type: Panel mount
·Terminal type: Solder
·Contact resistance: 10mΩ Max. initial @2-4V DC, 100mA for both silver and gold plated contacts
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
·Operating temperature: -30°C to 130°C
·Electrical life: 50,000 make-and-break cycles at full load
