Electrical Characteristics

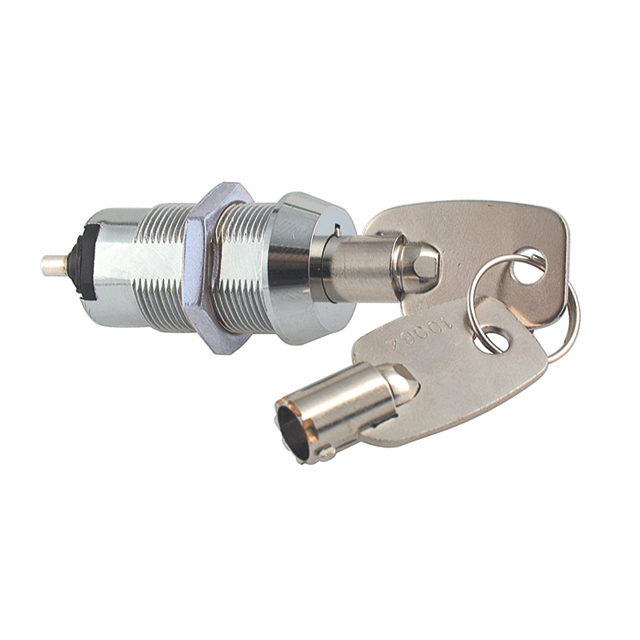

Descriptions
·Zinc alloy die cast housing and cylinder
·Bright chrome plated standard
·7 pin tumbler mechanism
·Steel made tubular keys, nickel plated
·Key withdrawals in both positions
·Silver plated contacts and terminals
·2 position (off-on) 2 tubular terminals
·Hex nut mounted
·All keyed alike or one combination per 100pcs standard
·Many combinations available
Specifications
·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 10mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
