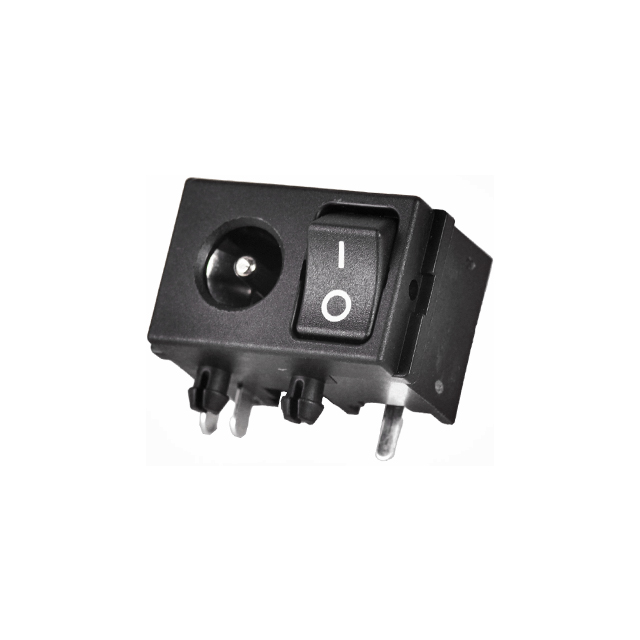

Specifications

·Gender: Jack
·Type: DC socket
·Pin diameter: 2.0 mm
·Current rating: 5A
·Voltage rating: 15VDC
·Mounting: Through hole
·Contact resistance: 20mΩ Max. (initial)
·Insulation resistance: 1000MΩ Min. at 500VDC between open contacts
·Dielectric strength: 1500VAC for 1 minute
·Electrical life: 6,000cycless
·Operation force for the reocker: 4~9N
·Temperature rise at the terminal: 30°C Max.
·Solder ability of terminal: 350°C Max. / 3 sec.

Materials

·Case & housing: Nylon 6/6 UL94V0, black
·Rocker: Nylon 6/6 UL94V2, black
·Pin: Brass, nickel plated
·Pin terminal: Brass, silver plated
·Break terminal: Brass, silver plated
·Tip terminal: Stainless steel, silver plated
·Contact: Brass, silver plated
·Side: Brass, silver plated
·Spring: Spring steel
