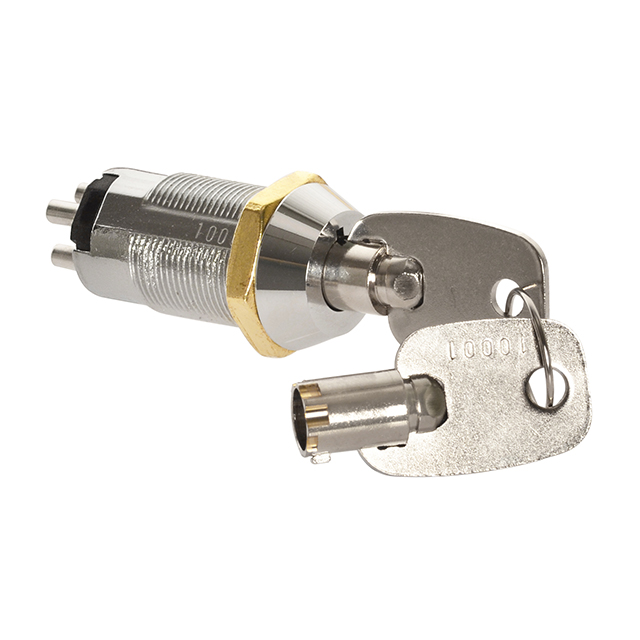

Keylock switch 4P on-off-on
Zinc alloy die cast housing
125V 1A (250V 0.5A) W/approval
3 key pulls
Unit price (USD)
Quantity Price
25+ 3.5791
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

Keylock Switch – Secure On/Off Control
Keylock switches provide reliable, secure on/off or multi-position control for electrical devices. Designed for industrial, commercial, and consumer use, they ensure authorized access and prevent accidental operation. Suitable for machinery, security systems, control panels, and professional equipment.

Descriptions

·Zinc alloy die cast housing and cylinder
·Bright chrome plated standard
·7 pin tumbler mechanism
·Steel made tubular keys, nickel plated
·Key withdrawals in three positions
·Silver plated contacts and terminals
·3 position (on-off-on) 4 tubular terminals
·Turn 45°-0°-45°
·Hex nut mounted
·All keyed alike or one combination per 100pcs standard
·Many combinations available

Specifications

·Rating: 1A 125VAC / 0.5A 250VAC
·Contact resistance: 10mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
