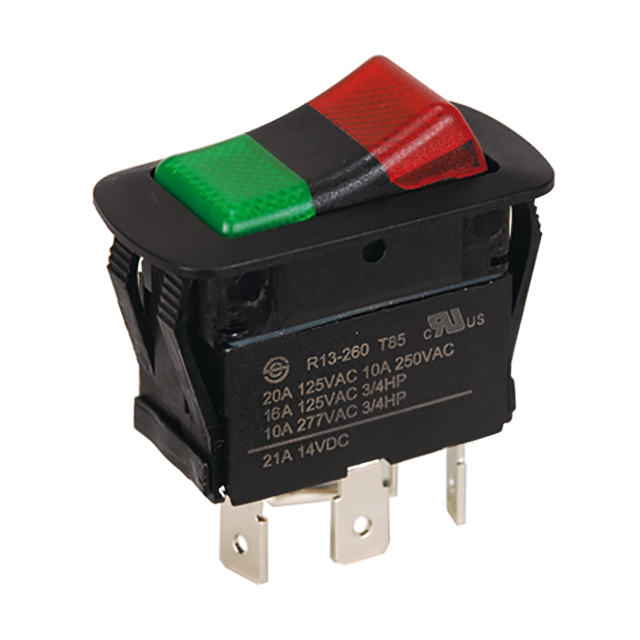

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: SPDT
·Switch function: On-Off-On
·Rating: 20A 125VAC / 10A 250VAC / 16A 125VAC / 10A 277VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operation temperature: -20°C to +85°C
Materials
·Frame: Nylon 66. black
·Actuator: Nylon 66 with 33% glass fiber, black
·Lens 1: PC, red
·Lens 2: PC, green
