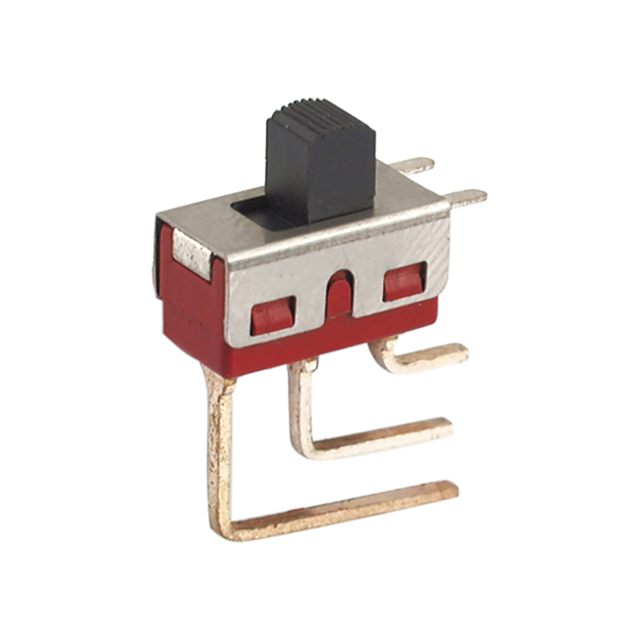

Slide switch (SPDT) on-on
120V 6A (250V 3A) W/approval
Unit price (USD)
Quantity Price
400+ 0.6410
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

Slide Switch – Multi-Position Electrical Control
Slide switches are versatile electrical components that allow selection between two or more switch positions, controlling circuits in various devices. Commonly used in audio and video equipment, lighting dimmers, variable-speed hand tools, and other electronics, they offer reliable and precise operation.
A slide switch operates by moving a slider to engage or disengage fixed contacts, enabling different electrical connections. Some designs combine slide and pushbutton functions for momentary actuation in each position. Available in various types-such as conductor strip slider switches, pivoting conductor designs, and microswitches with multiple terminals-slide switches can provide ON/OFF, changeover, or custom switching functions for diverse applications.

Specifications

·Circuit: 1P2T
.Switch function: On-On
·Contact rating: 6A 120VAC / 3A 250VAC
·Contact resistance: 10mΩ Max. initial @2-4 VDC 100mA for silver plated contacts
·Insulation resistance: 1000MΩ Min.
·Dielectric strength: 1000VAC RMS Min. @ sea level
·Operating temperature: -30°C to +130°C
·Electrical life: 60,000 make-and-break cycles at full load

Materials


·Case: Diallyl phthalate (DAP) (UL94V-0)
·Actuator: Nylon, black standard
·Housing: Stainless steel
·Switch support: Brass, tin plated
·Terminal/contact: Silver plated
·Terminal seal: Epoxy
