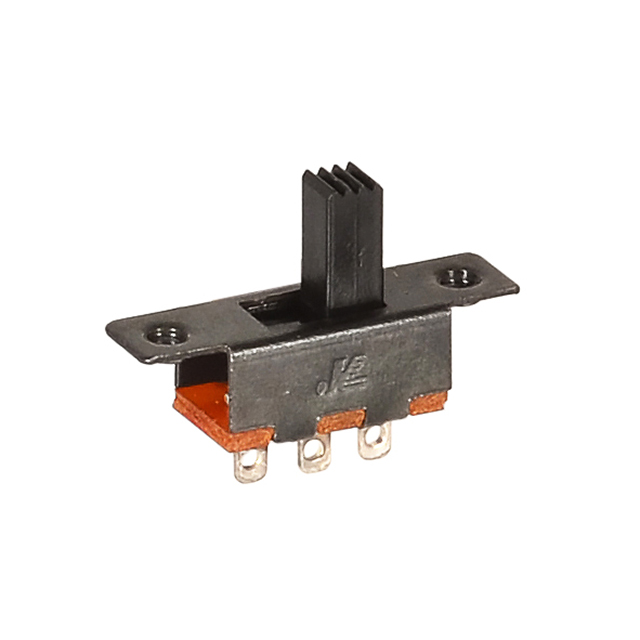

3P slide switch (1P2T)
Price per each (USD)
Quantity Price
20+ 0.2558
100+ 0.1462
500+ 0.0853
1000+ 0.0710
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: 1P2T
·Current rating: 0.5A
·Voltage rating: 50VDC
·Orientation: Vertical
·Mounting type: Panel mount
·Termination: Solder lug
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 3000VAC 10mA for 5 second (terminal-knob)
·Electronical life: 10,000 cycles
·Operating force: 1.2~2.5N
·Ambient temperature: -25°C to +85°C
