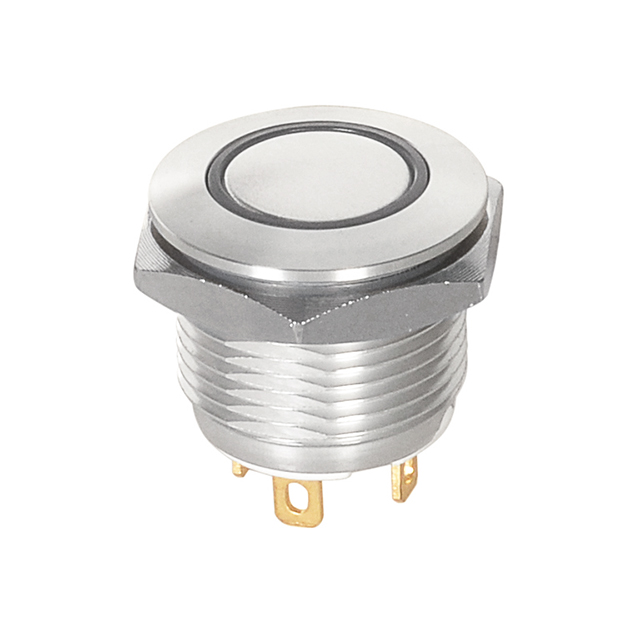

2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)
36VDC 2A
Can reach to IP67
Unit price (USD)
Quantity Price
150+ 3.2738
Specification :
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics


·Circuit: SPDT
·Switch function: Momentary / NO / Off-(On)
·Rating: 2A 36VDC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 1OOOMΩ Min. at 500VDC
·Dielectric strength: 2000V RMS@sea level
·Electrical life: 200,000 make-and-break cycles at full load
·Mechanical life: 1,000,000 cycles
·Operation temperature: -20°C to +70°C
·Travel: About 2.0mm±0.2mm
·Operation pressure: 4.5N±1.5N
·Ingress protection: IP67
·Torque: 11.5 kgf‧cm
·Current limiting resistor is required to limit LED forward current to 20mA


·Bushing: Aluminum alloy
·Base: PBT (UL-94V0)
·Actuator: PC (translucent UL-94V2)
·Cap: Aluminum alloy
·Spring: Steel
·Sealing: Silicone (translucent)
·O-ring: Silicone (translucent)
·Nut: Brass (nickel plated)
·Terminal: Brass, gold flash plated
·Contact: Silver alloy
