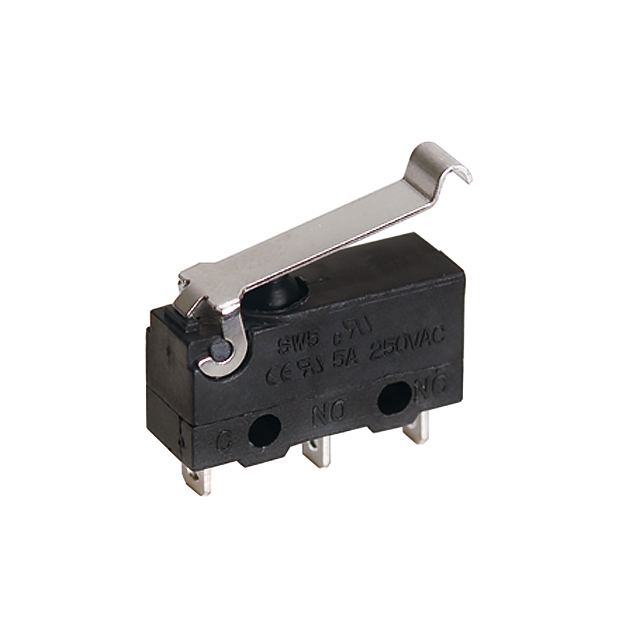

Waterproof mini micro switch (SPDT)
on-on 40gf W/approval
125V 5A (250V 5A)
Price per each (USD)
Quantity Price
95+ 0.7372
100+ 0.6143
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: SPDT
·Switch fucntion: On-On
·Rating: 5A 125VAC / 5A 250VAC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
·Operating force: 40±20gf
·Operating temperature: -25°C to +80°C
·Soldering temperature: 360°C Max. for 3 seconds
·Ambient humidity used: 85% RH Max.
·Mechanical life: 100,000 cycles
·Electrical life: 10,000 cycles

Materials

·Upper housing: Nylon, black
·Base: Nylon, black
·Button: PBT, black
·Spring: SUS304
·Terminals: C2680
·Contacts: Silver alloy
·Change plate: C5210
·Cap: Rubber
·Lever: SUS301
