Electrical Characteristics
Overview

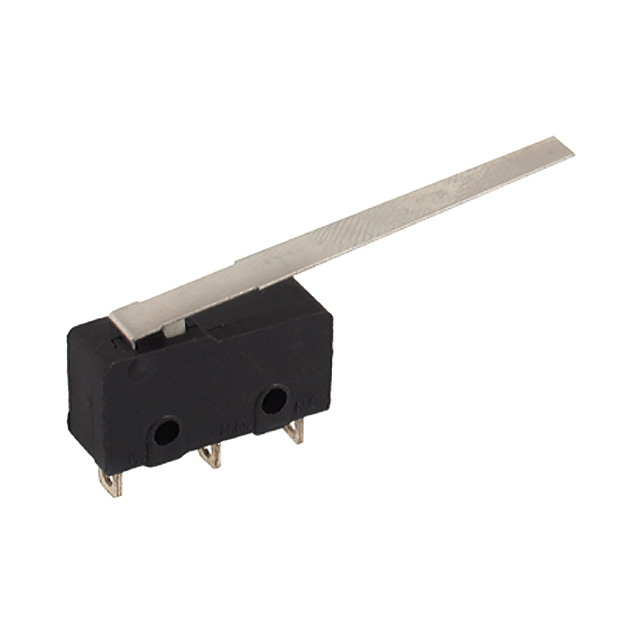

Micro Switch – Precision Snap-Action Switch
Micro switches are compact snap-action switches requiring minimal force for actuation. Found in industrial controls, appliances, and automotive systems, they are valued for long life, precise switching, and varied actuator styles.
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 5A 125VAC / 3A 250VAC
·Dielectric strength: 1000VAC for 1 minute (between contacts), 1500VAC for 1 minute (between terminal and ground)
·Operating force: 30g Max.
·Releasing force: 5g Min.
·Operating temperature: -25°C to +80°C
·Mechanical life: 10,000,000 operations Min.
·Electrical life: 100,000 operation Min. (at rated load)
