Electrical Characteristics
Overview

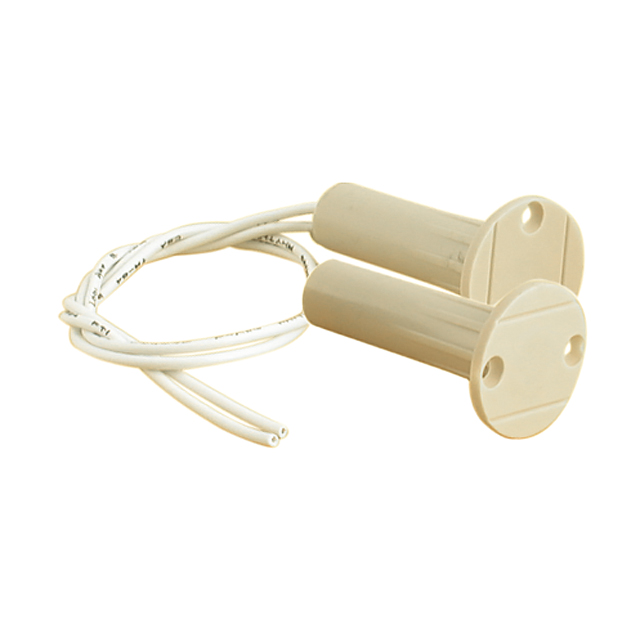

Reed Alarm Switch – Magnetic Contact Sensor
Reed alarm switches are magnetically operated for non-contact activation. Used in alarms, door/window sensors, and industrial sensing, they are sealed, dust-proof, and suited for low-power applications.
Specifications
·Switch function: Normally close, push off
·Switch current: 0.5A
·Switch voltage: 100VDC / 125VAC
·Contact resistance: 300mΩ
·Operating gap: 2 cm Max.
·Wire specification: 24AWG 90°C UL1007
·Mounting hole: 10.2 mm Min.
·Termination: Wire leads
·Width (Dia.): 20 mm
·Color: White
