Electrical Characteristics
Specifications

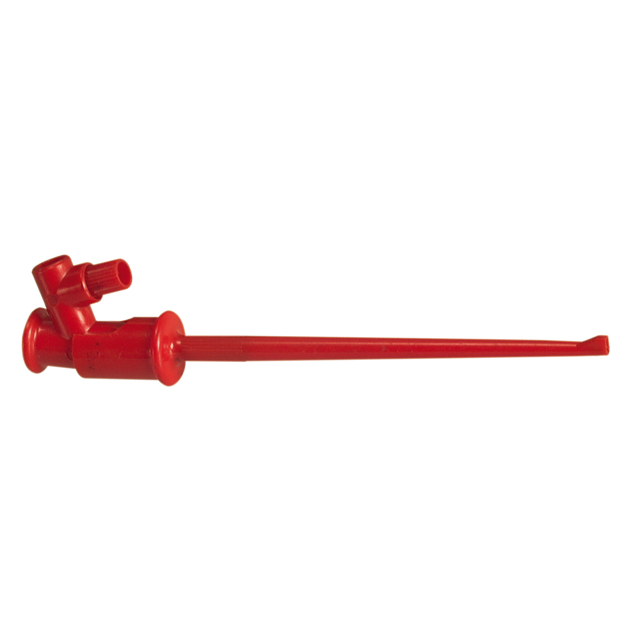

·Type: Large hook clip
·Current rating: 3A
.Fit 2.5mm IC lead
·Termination: Solder
.Fits O.D. less than 4mm wire by screwing
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC Min. for 1 minute
·Operating temperature: -20°C to +80°C
·Color: Red, black
·Length: 138 mm
Materials
·Handle: ABS
.Clip: Phosphor bronze
