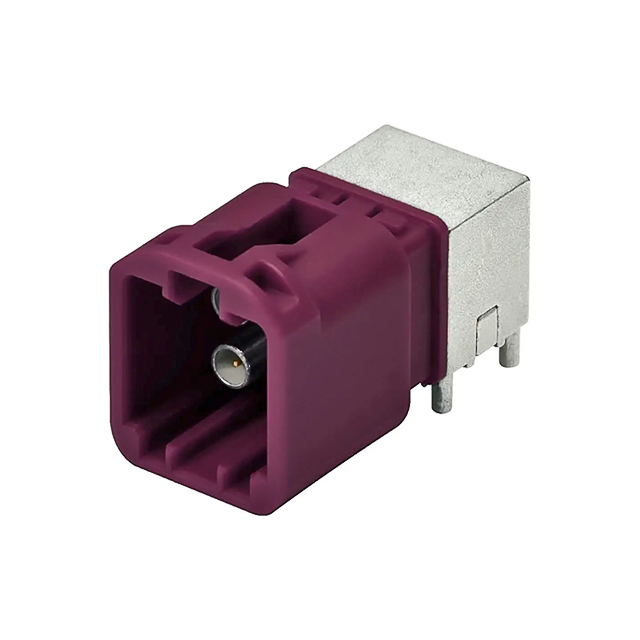

Electrical Characteristics
Specifications
·Gender: Male
·Body orientation: Right angle
·Mouting type: Through hole
·Termination: Solder
·Impedance: 50Ω
·Frequency: DC to 9GHz
·Insulation resistance: 1000MΩ Min.
·Insertion loss: 0.75dB Max. to 9GHz
·Return loss: 17dB Min. to 6GHz, 12dB Min. to 9GHz
·Temperature range: -40°C to +105°C
·Mating cycles: 25 Min.
·Engagememt force: 75N Max.
·Disengagement force: 60N Min.
·Insulator color: Black, white, blue, claret violet, green, brown, water blue
Materials
·Insulator: Thermoplastic (UL94V-0)
·Contacts: Brass, 40u"~160u" nickel plated (underplate), 80u"~160u" Ag plated (contact area), 80u"~160u" tin(matte) plated (solder tails area)
·Shell: Zamak
