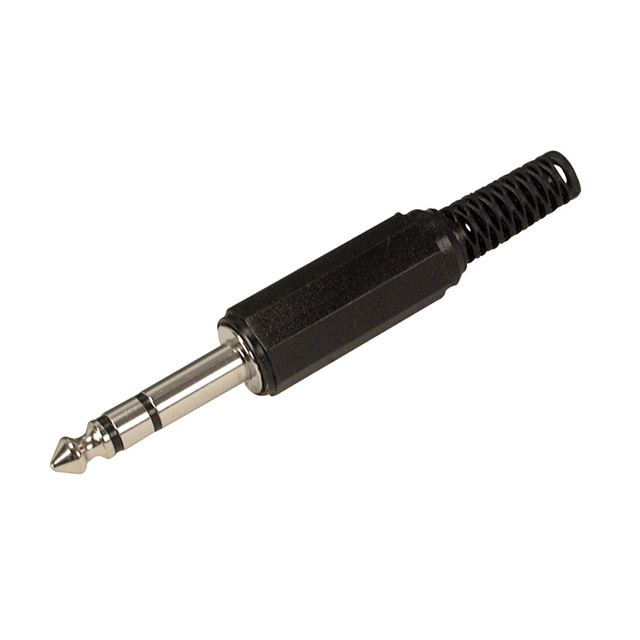

6.35mm Stereo plug W/cable protector
Metal screw thread
Unit price (USD)
Quantity Price
5+ 1.4655
20+ 0.8374
100+ 0.4885
200+ 0.4071
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·No. of contacts: 3
·Pin diameter: 1/4" (6.35 mm)
·Orientation: Straight
·Mounting type: Cable mount
·Termination: Crimp
·Contact resistance: depends on mated connector
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute

Materials

·Contact: Brass, nickel plated
·Insulator: Nylon 66 + 30% fiber
·Cover: PE, black
