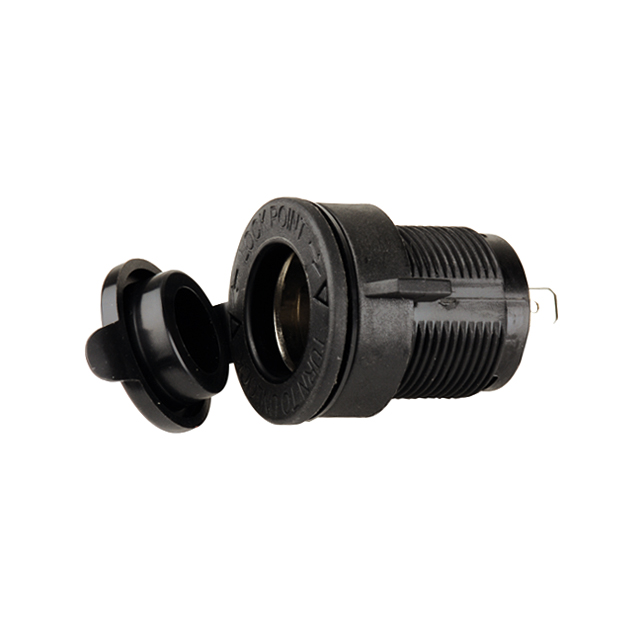

Auto Jack – Automotive Power Receptacle
Auto jacks are female connectors for auto plugs, ensuring safe, stable connections to vehicle power systems. Offered in panel-mounted, inline, and fuse-protected designs, they support high-current loads and often feature weather-resistant housings. Used in automotive test setups, mobile power modules, and diagnostic panels.

Features

·Water resistant sealing cap
·Sealink locking system
·Easy to install with the locking ring for rear access install ation
·Compatible with standard CLA plugs

Specifications

·Gender: Female
·Current rating: 20A
·Voltage rating: 12V or 24V DC
·Moutning type: Panel mount
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operation temperature: -20°C to +85°C
·Color: Black

Materials

·Housing: Nylon with glass fiber (UL94-HB)
