Overview

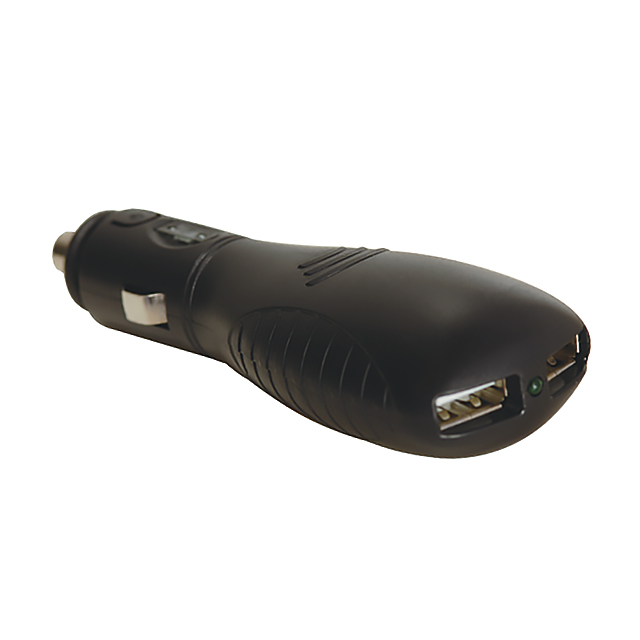

Auto Plug – Automotive Power Connector
Auto plugs, including 12 V cigarette lighter and battery terminal connectors, provide secure connections for vehicle power interfaces and automotive diagnostics. Available in barrel-type, removable tip, and fused variants, some with insulated handles and high-current capacity. Ideal for battery testing and on-board power monitoring.

Features

·Dual USB ports suitable for most mobile phones, MP3, MP4 players
·Heat sinks on the housing for efficient heat dissipation
·Short circuit protection
·Over voltage protection
·With 3A mini blade fuse max

Specifications

·USB type: A x 2 ports
·Input rating: 12VDC / 24VDC
·USB output current: 2.4A Max. each port
·USB output voltage: 5V DC
·Indicator: Green LED
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operation temperature: 0°C to +60°C
·Operation force to plug-in/pull-out: 3-10Kgf
