Electrical Characteristics

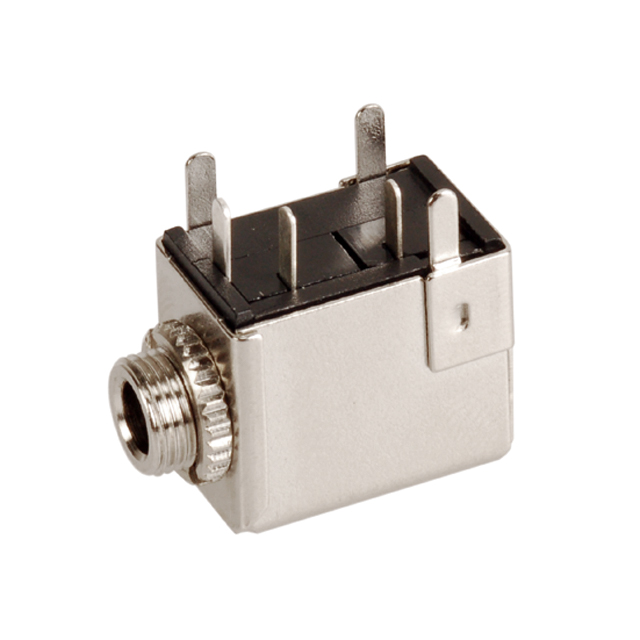

Specifications
·Gender: Female
·No. of poles: 3
·Pin diameter: 3.5 mm
·Orientation: Right angle
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Termination: Solder
Materials
.Earth terminal: Brass 0.3t, silver plated
.Ring spring: Brass 0.25t, silver plated
.Tip spring: Brass 0.25t, silver plated
.Housing: PBT, black color
.Cover: PBT, black color
.Barrel: Brass, nickel plated
.Spring L: SUS-304
.Spring S: SUS-304
.Metal shell: Steel 0.3t, nickel plated
.Nut: Brass 1.5t, nickel plated
