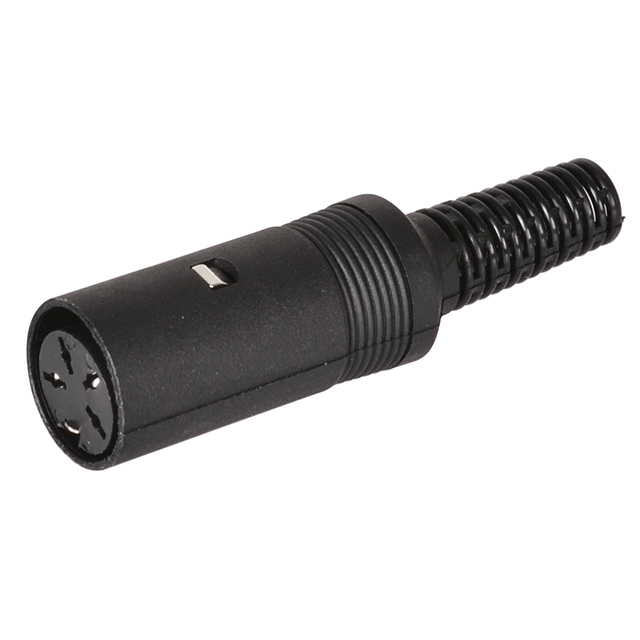

4P din socket
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Overview

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.

Specifications

·Gender: Female
·No. of contacts: 4
·Rating: 1A 100V AC / 2A 12V DC
·Orientation: Straight
·Contact resistance: 30mΩ Max. (initial)
·Insulation resistance: 50MΩ Min. at 250VDC
·Withstand voltage: 500VAC for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder

Materials

·Boot: EVA
·Metal part: Steel, nickel plated
·Insulator: PC
·Pin contact: Brass, silver plated
