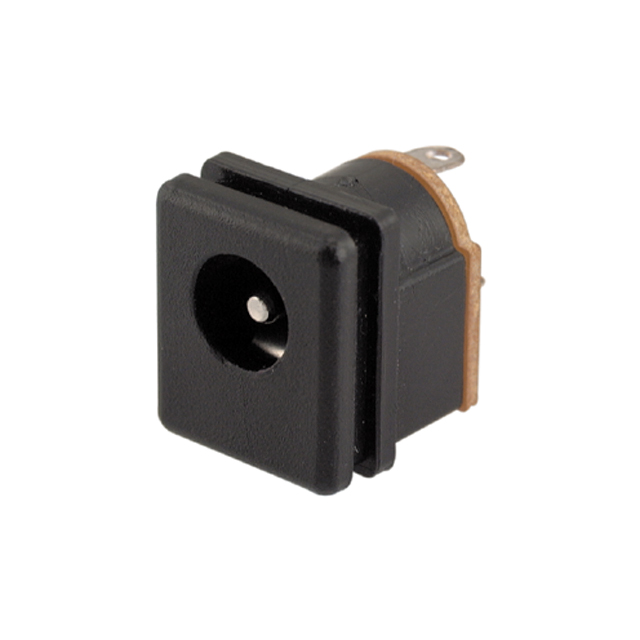

Electrical Characteristics
Specifications
·Gender: Jack
·Type: DC socket
·Pin diameter: 2.5 mm
·Current rating: 3A
·Voltage rating: 24VDC
·Mounting: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstanding voltage: 500VAC for 1 minute
·Operating temperature: -25°C to +70°C
·Storage temperature: -25°C to +85°C
·Insertion and withdrawal force: 2.94N ~ 29.4N (0.3kgf ~ 3kgf)
Materials
·Center pin terminal: C2680, Ag plated
·Tip spring: C5191, Ag plated
·Shunt terminal: C2680, Ag plated
·Center pin: Copper alloy H59, SN plated
·Housing: PBT 4815, UL94V-0 black
·Cover: PF
