Electrical Characteristics
Specifications

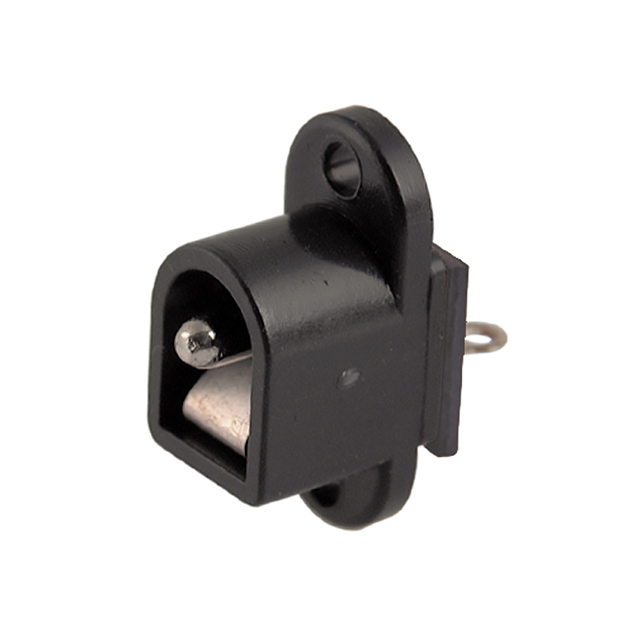

·Gender: Jack
·Type: DC socket
·Pin diameter: 2.5 mm
·Current rating: 5A
·Voltage rating: 24VDC
·Mounting: Panel mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstanding voltage: 500VAC for 1 minute
Materials
·Pin terminal: Brass 0.4t, silver plated
·Sleeve spring: Phosphor bronze 0.2t, silver plated
·Break terminal: Brass 0.3t, silver plated
·Pin(2.5): Copper, nickel plated
·Housing: PBT UL94V0, black
·Insulator: Bakelite 1.0t, natural
