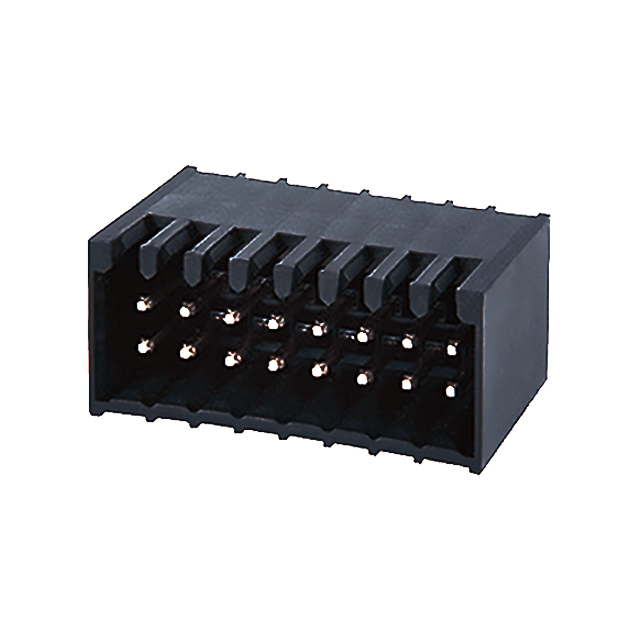

Right angle 2.54mm female terminal block dual row 16P PCB with approval
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 16
·Current rating: 5A
·Voltage rating: 150VAC
·Insulation resistance: ≧500MΩ at DC 500V
·Mounting type: Through hole
·Soldering method: Wave soldering
·Type of locking: Without
·Level: Double level
·Operating temperature: -40°C to +120°C
·Color: Black


·Insulation: PA, flame retardant rating UL94V-0
·Conductor: Copper alloy, tin plated
