Electrical Characteristics
Specifications
·Gender: Male - female

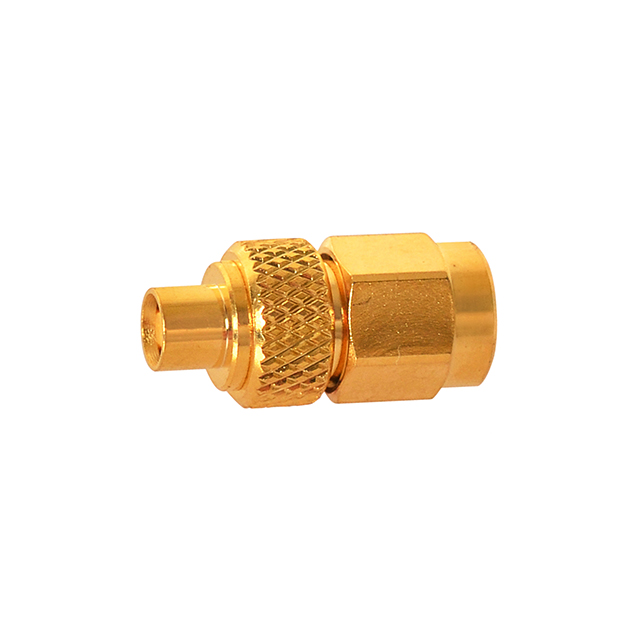

·Adapter type: SMA to MCX
·Adapter type A: SMA
·Adapter type B: MCX
·Impedance: 50Ω
·Body orientation: Straight
·Contact resistance: 3.0mΩ Max.
·Withstand voltage: 1000VAC for 1 minute
Materials
·Body: Brass, gold plated
·Pin: Phosphor bronze, gold plated
·Insulator: Teflon
·Gasket: Silicone
·Inner retaining ring: Stainless
·Shell: Brass, gold plated
