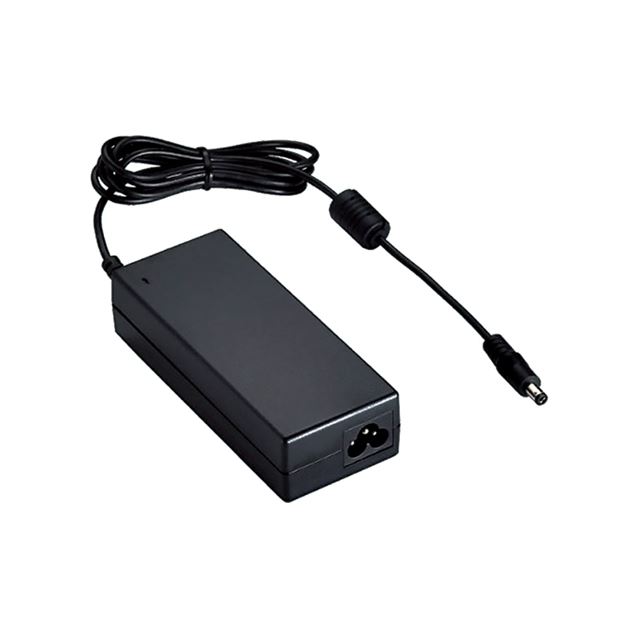

84W Medical AC/DC adapter 12V 7A IEC60320/C6 with approval
Output plug: 2.5x5.5x9.5 mm
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Features

·IEC/EN/ANSI/AAMI ES 60601-1 (Edition 3.1)
·EMC: IEC60601-1-2:2014 (ED 4.0)
·Means of protection: 2 X MOPP
·Regulated output with low ripple noise
·Safety agency requirements and EMI/EMS certified
·Modified and custom design available
·Short circuit protection
·Over voltage protection
·Over current protection
·Over temperature protection

Specifications

·Plug type: IEC60320/C6
·Output voltage: 12V
·Output current: 7A
·Output power: 84W
·Output connector: 2.5 x 5.5 x 9.5 mm
·Cable length: 1.5M
Input
·Input voltage: 100VAC - 240VAC
·Input current: 1.2A - 0.5A
·Line frequency: 50Hz - 60Hz
·Input protection: Internal primary current fuse
Output
·Load regulation: ±5%
·Ripple & noise: 1% Vp-p Max. for output voltage @ full load
·Transient response: 0.5mS for 50% load change typical
·Hold-up time: 10mS @ full load
Electrical
·Topology: Switching flyback
·Dielectric withstand: 4000VAC Primary - secondary
·Touch current: < 100μA
·Efficiency: Meet DoE level VI, ErP stage 2
·EMC Standards: EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
·MTBF: 300,000 Calculated hours at 25°C, by telcordia SR-332
Environmental
·Operating temperature: -20°C to +40°C
·Storage temperature: -20°C to +80°C
·Relative humidity:
Operating: 20% to 80% RH
Storage: 10% to 90% RH
·Cooling: Natural convection cooling
