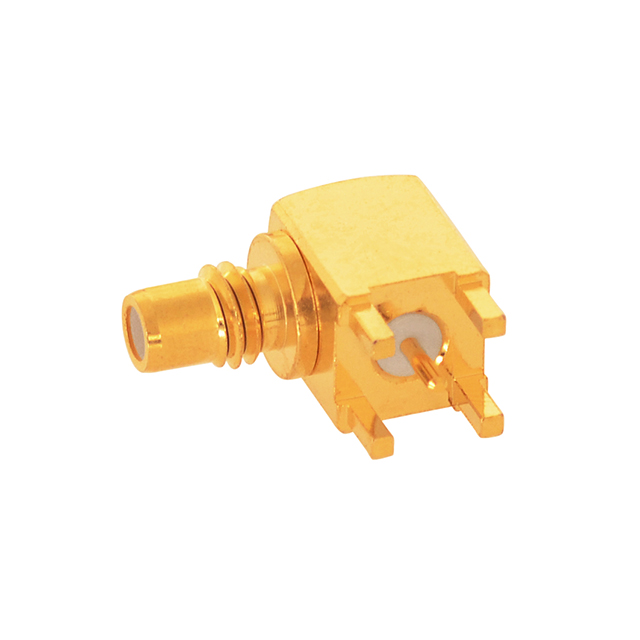

Right angle SMC female PCB mount
gold plated
Unit price (USD)
Quantity Price
160+ 0.8142
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·Connector type: SMC
·Impedance: 50Ω
·Body orientation: Right angle
·Mounting type: PCB mount
·Frequency range: 0-10GHz
·Voltage rating: 335VAC
·Contact resistance: 6.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute

Materials

·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
·SQ body: Brass, gold plated
