Electrical Characteristics
Specifications

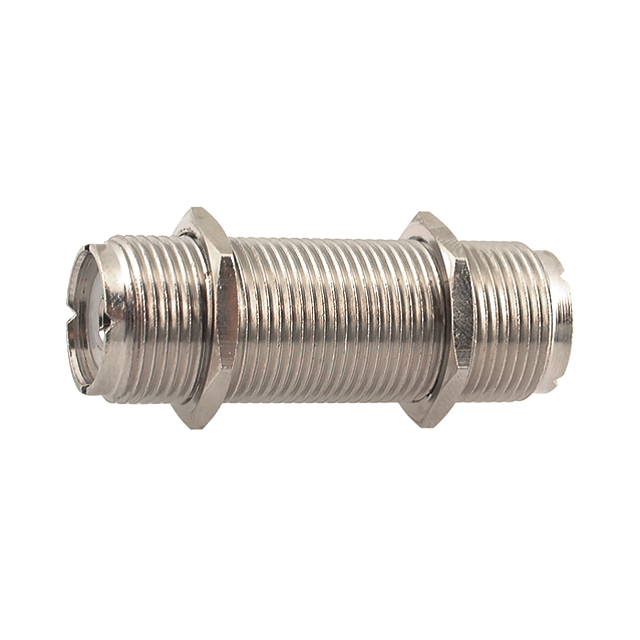

·Gender: Female - female
·Adapter type: UHF to UHF
·Adapter type A: UHF female
·Adapter type B: UHF female
·Impedance: 50Ω
·Body orientation: Straight
·Frequency range: 0-300MHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Insulator: Delrin, white
·Pin: Brass, nickel plated
·Nut: Brass, nickel plated
