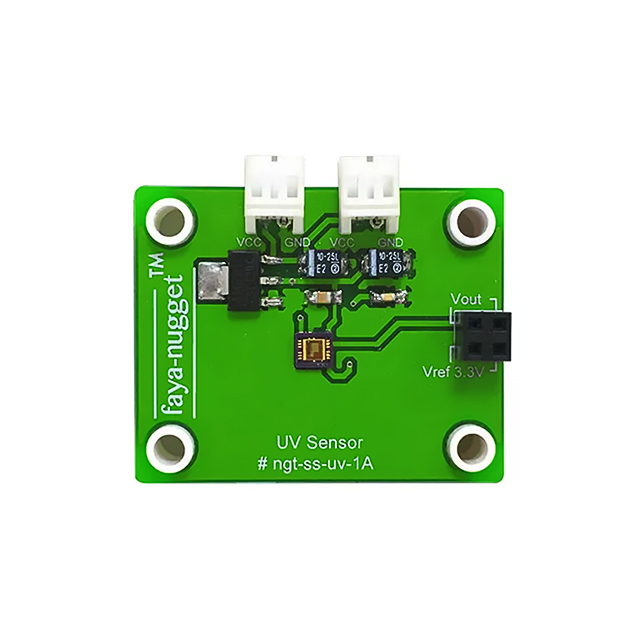

UV sensor module 5VDC 300μA
Response wavelength: 365nm
This item can't be ordered online, please send inquiry!!
Electrical Characteristics

Features

·Photodiode sensitive to UV-A and UV-B
·Embedded operational amplifier

Specifications

·Operating voltage: 5VDC
·Output voltage: 0.95 ~ 1.05VDC
·Operating current: 300μA
·Standby current: 0.1μA
·Response wavelength: 365nm
·Operating temperature: -20 to +70°C

Applications

·UV tester
·UV index meter
·Outdoor UV monitoring equipment
·Germicidal lamp equipment
·Flame detection
·Weather station
·Bicycle navigation
