Electrical Characteristics
Specifications

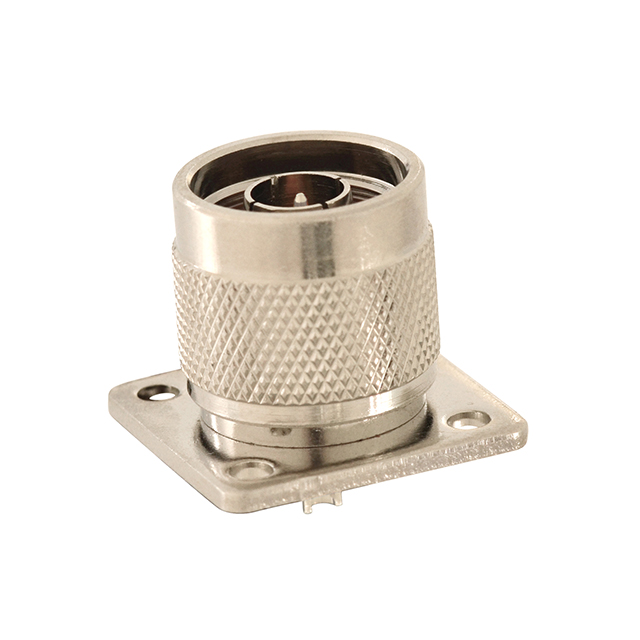

·Gender: Male
·Connector type: N
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Chassis mount
·Frequency range: 0-11GHz
·Voltage rating: 1000VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 2500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Shell: Brass, nickel plated
·Panel: Brass, nickel plated
·Pin: Brass, nickel plated
·Insulator: Delrin
·Gasket: Rubber, red
·Washer: Brass
