Electrical Characteristics
Specifications
·Gender: Male - female

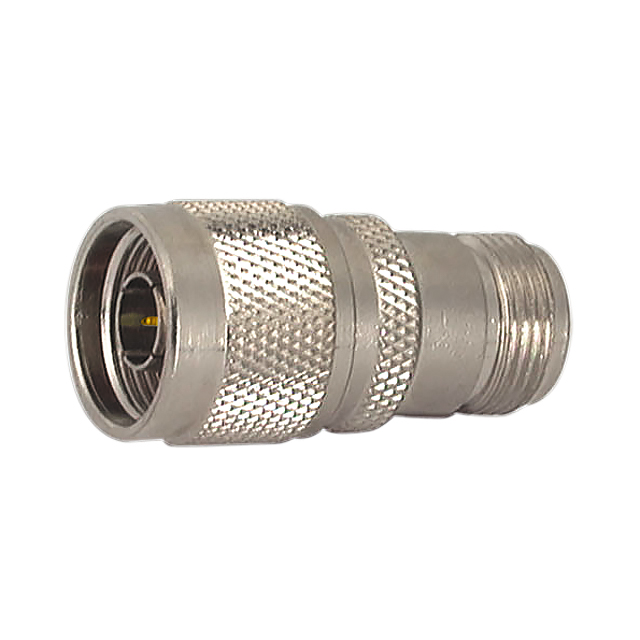

·Adapter type: N to N
·Adapter type A: N male
·Adapter type B: N female
·Impedance: 50Ω
·Frequency range: 0-11GHz
·Voltage rating: 1000VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 2500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Insulator: Delrin
