Electrical Characteristics

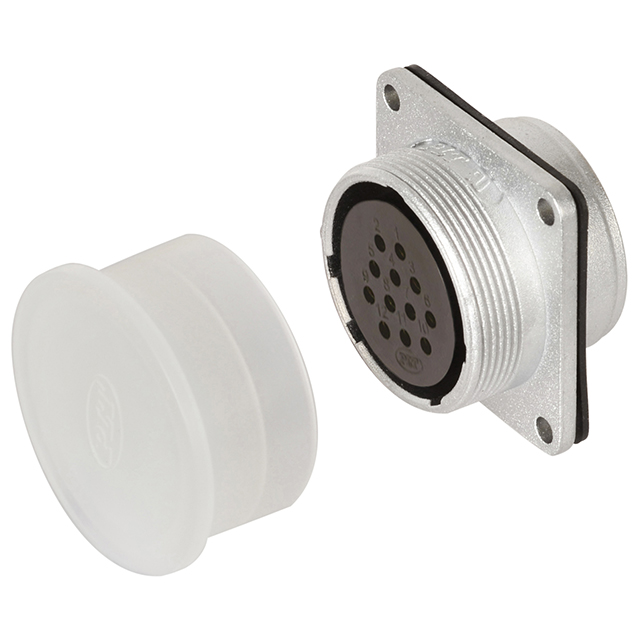

Specifications
·Gender: Female
·Pin diameter: 1.6mm
·Rated current: 10A
·Rated voltage: 250V
·No. of contacts: 12
·Connector size: M30
·Mounting type: Cable mount
·Body orientation: Straight
·Operation limit voltage: 250VAC rms
·Contact resistance: 5.0mΩ Max. at DC 1A
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC rms for 1 minute
Materials
·Body: Zn alloy, M-Cr plated
·Ring: SUS301
·Insulator: Bakelite
·Contact: Copper alloy, M-Au plated
