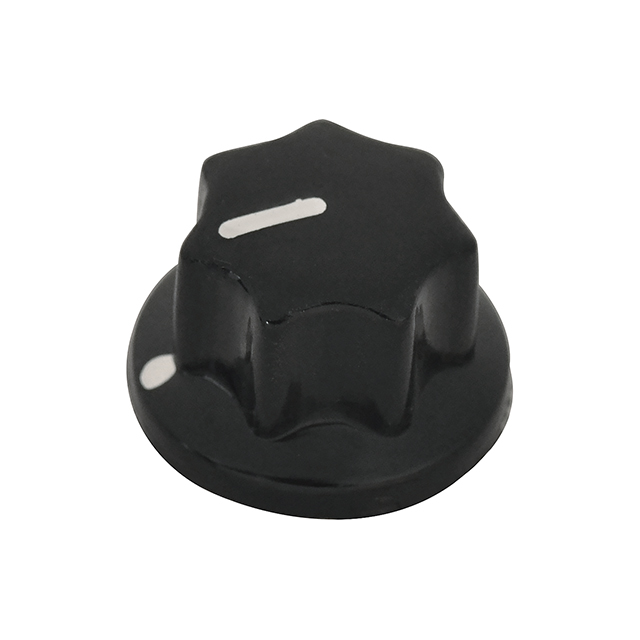

Bakelite knob screw type
Shaft hole:Ø6.4

Item No.：S8864
Product Range : Knobs

Unit price (USD)

Quantity	Price
10+	0.7692
40+	0.4396
200+	0.2564
400+	0.2137

Add

Enter Quantity to Check Lead Time

Data Sheet

Electrical Characteristics

Specifications

.Style: Cylindrical with skirt
.Indicator: Line on top & dot on skirt
.Shaft size: 6.4mm
.Knob diameter: 19.2mm
.Height: 11.7mm
.Color: Black

Materials

.Housing: Phenolic
.Insert bushing: Zinc alloy
.Screw: Brass alloy, M3 x P0.5 x 3L
