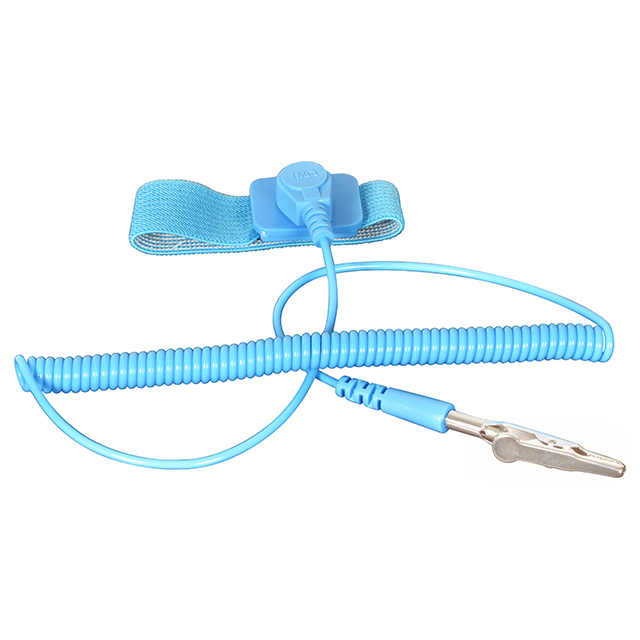

Anti-static elastic wrist strap
PU coil cord
Length:6ft
Color:blue
Unit price (USD)
Quantity Price
250+ 1.8199
Add
Enter Quantity to Check Lead Time
Electrical Characteristics

Features

·The 16 strands of conductive sliver are uniformly knit on the inner surface of the
material and are electrically isolated from the outer surface (blue side ).
·Resistor 1MΩ±5%, 1/4 watt series resistor limits current for operator safety.
·Rapid retraction coil cord compresses length with resulting benefit of les tangling and dragging along work surface.
·Barrel type banana plug with machined contour spring support. Crimped uniformly from 4 sides for maximum strength. Fits industry standard banana jack.
·High flex life.

Specifications

·Wrist strap type: Elastic wrist band with grounding cord
·Width: 19mm
·Includes code: Yes
·Color: Blue
·Cord type: Coiled
·Cord length: 6ft
·Wrist band resistance: 10e3Ω Max.
·Grounding resistance RTG: 10e6Ω ± 5%
·Banding life test average: 200000 cycle Min. ANSI/ESD S20.20

Materials

·Wrist
1.Insulating plastic: ABS
2.300 Series stainless steel back plate
3.10mm Nickel plate brass stud, fit to 10mm spring type socket
4.Knitted elastic band material of blue fiber, material made up of texture polyester
with 16 strands of conductive fiber (75% polyester, 25% stainless steel fiber)
·Coiled ground cord
1.Spring socket: 10mm, copper nickel plated
2.2.3mm(D),#1 tinsel, consisting of 7 strands of polyester wrapped with copper
3.Thermoplastic polyurethane elastomer strain relief molded on
4.Alligator clip: Nickel plated
