Electrical Characteristics
Features
·Non-brushed Loop combined with hook used high frequency welded.
·20mm hook -Delicate material with good hand feeling.
·Nickel plate metal ring for easy adjust.
·Resistor 1MΩ±5%, 1/4 watt series resistor limits current for operator safety.
·Rapid retraction coil cord compresses length with resulting benefit of les tangling and dragging along work surface.
·Barrel type banana plug with machined contour spring support. Crimped uniformly from 4 sides for maximum strength. Fits industry standard banana jack.
·High flex life.
Specifications

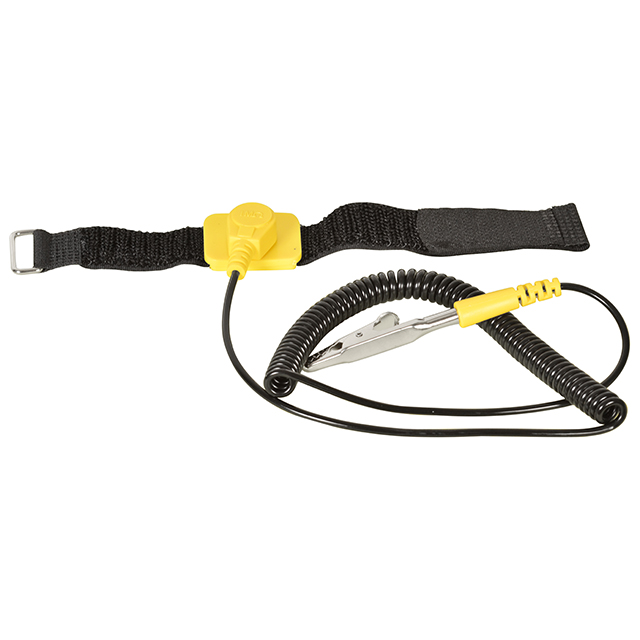

·Wrist band: Adjustable type
·Includes code: Yes
·Color: Black
·Cord type: Coiled
·Cord length: 6ft
·Wrist band resistance: 10e3~10e5Ω
·Grounding resistance RTG: 10e6±10%Ω
·Banding life test average: 50000 cycle Min. ANSI/ESD S20.20
Materials
·Wrist
1.Insulating plastic: ABS
2.300 Series stainless steel back plate
3.10mm Nickel plate brass stud, fit to 10mm spring type socket
4.20mm Wide velcro black nylon material, smooth loop side coated with conductive carbon.
·Coiled ground cord
1.Spring socket: 10mm, copper nickel plated
2.3mm(D),#1 tinsel, consisting of 7 strands of polyester wrapped with copper
3.Polyurethane wire insulation
4.PVC plastic material molded on
5.Alligator clip: Nickel plated
