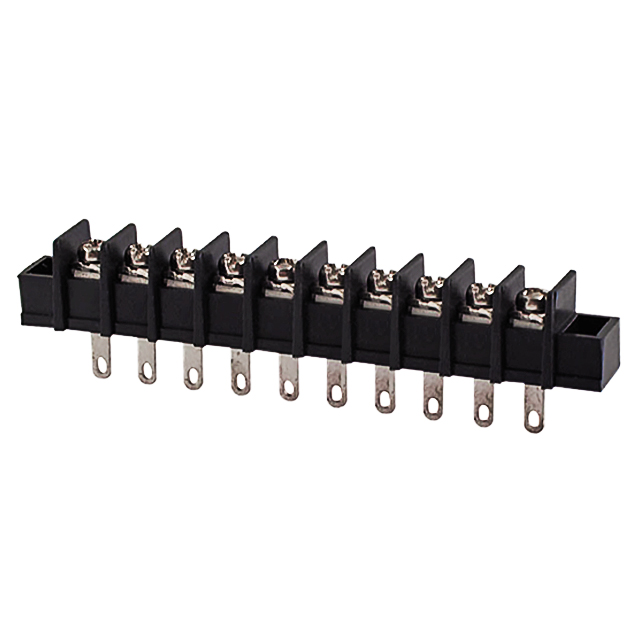

Electrical Characteristics
Specifications
·Pitch: 10mm
·No. of contacts: 10
·Rated: 20A 300VAC
·Orientation: Straight
·Insulation resistance: 1000MΩ Min. at 500VDC
·Operating temperature: -40°C to +120°C
·Screw torque value: 12Kg-cm
·Wire range AWG: 12-22 STR
Materials
·Housing: Nylon 66, black
·Terminals: Brass 0.8t, tin plated
·Terminal screws: M3.5 brass, nickel plated
