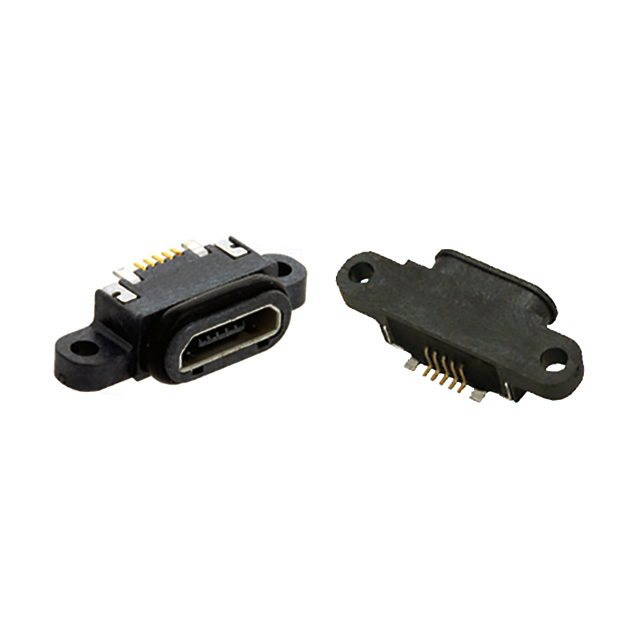

Waterproof 5P micro USB B type socket
(SMD type)
Can reach to IPX7
Unit price (USD)
Quantity Price
1100+ 1.4423
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·Mounting type: Surface mount
·USB connector type: Micro B
·Current rating: 1,5 pin 1A Max. / 2,3,4 pin 0.5A Max.
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 100VAC for 1 minute
·Operating temperature: -40°C to +85°C
·Waterproof: IPX7

Materials

·Housing: LCP UL94V-0, black
·Contact: Phosphor bronze
·Shell: Stainless steel, matte tin plated
·O-ring: Silicon
·Pad: Brass, matte tin plated
Finish
·Contact area: Gold 10u"
·Gold flash on other area underplated: Nickel 50u"
